智能电表接线图

  • A+
所属分类:电工知识

     智能电表原理接线图与机械式电表原理接线图相同,不同的是增加了脉冲输出口接线。

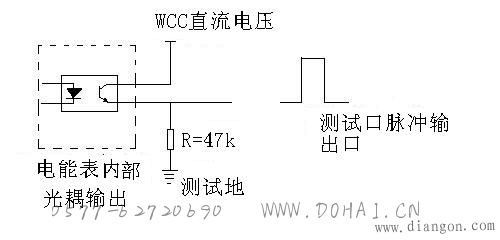

智能表脉冲输出口接线示意图:

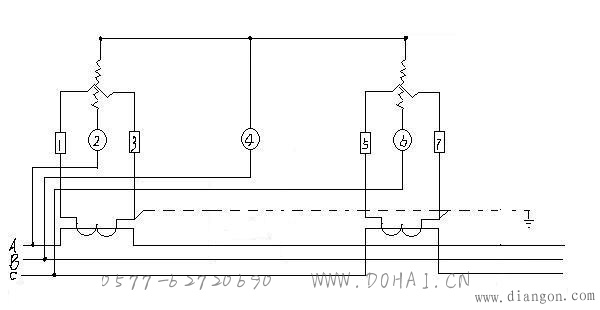

三相三线经电流互感器接入式智能表接线图:

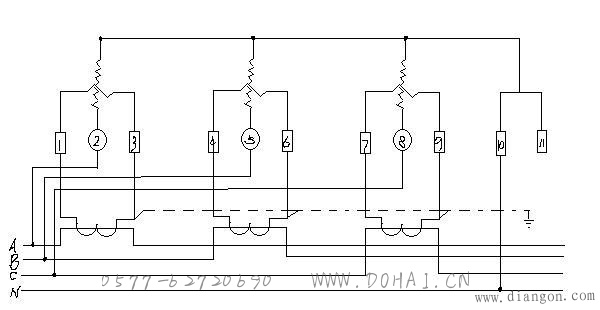

三相四线经电流互感器接入式智能表接线图:
